John Deere約翰迪爾強鹿柴油機搖臂、搖臂軸、搖臂推桿零件圖冊
詳細描述
搖臂、搖臂軸、搖臂推桿

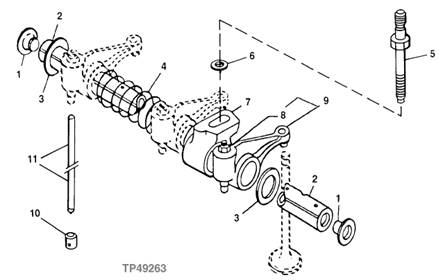

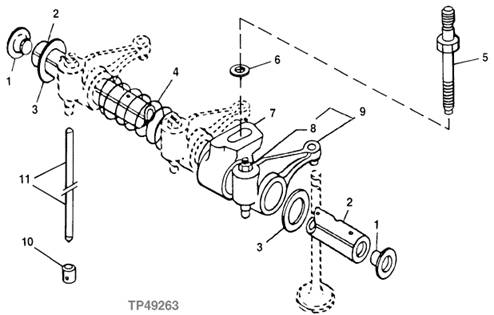

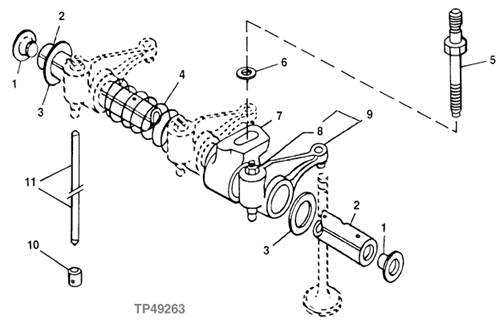

John Deere約翰迪爾強鹿6068 6.8L柴油發動機搖臂、搖臂軸、搖臂推桿零件圖冊
KEY PART NO. PART NAME QTY SERIAL NO. 0 0 0 REMARKS
1 R54565 PLUG 2 X X X
2 R123514 ROCKER ARM SHAFT 1 X X X
3 T20316 WASHER 2 X X X
4 T20314 SPRING 5 X X X
5 R123271 STUD 6 X X X
6 24M7346 WASHER 6 X X X (SUB FOR R42729)
7 R123161 SUPPORT 6 X X X
8 14M7148 NUT 1 X X X M10
9 RE68695 ROCKER ARM 12 X X X (SUB FOR RE59457)
10 R123565 CAM FOLLOWER 12 X X X
11 R107731 PUSH ROD 12 X X X
KEY PART NO. PART NAME QTY SERIAL NO. 0 0 0 REMARKS
1 R54565 PLUG 2 X X X
2 R123514 ROCKER ARM SHAFT 1 X X X
3 T20316 WASHER 2 X X X
4 T20314 SPRING 5 X X X
5 R123271 STUD 6 X X X
6 24M7346 WASHER 6 X X X (SUB FOR R42729)
7 R123161 SUPPORT 6 X X X
8 14M7148 NUT 1 X X X M10
9 RE68695 ROCKER ARM 12 X X X (SUB FOR RE59457)
10 R123565 CAM FOLLOWER 12 X X X
11 R107731 PUSH ROD 12 X X X
KEY PART NO. PART NAME QTY SERIAL NO. 0 0 1 REMARKS
1 R54565 PLUG 2 X X X
2 R123514 ROCKER ARM SHAFT 1 X X X
3 T20316 WASHER 2 X X X
4 T20314 SPRING 5 X X X
5 R123271 STUD 6 X X X
6 24M7346 WASHER 6 X X X (SUB FOR R42729)
7 R123161 SUPPORT 6 X X X
8 14M7148 NUT 1 X X X M10
9 RE68695 ROCKER ARM 12 X X X (SUB FOR RE59457)
10 R123565 CAM FOLLOWER 12 X X X
11 R107731 PUSH ROD 12 X X X
