John Deere約翰迪爾強鹿柴油發動機柴油濾清器總成零件圖冊
詳細描述
柴油濾清器總成
John Deere約翰迪爾強鹿6068 6.8L柴油發動機柴油濾清器總成零件圖冊

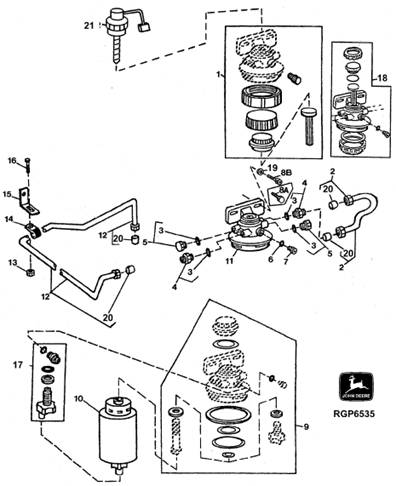

KEY PART NO. PART NAME QTY SERIAL NO. 0 0 0 REMARKS
1 RE51649 SEAL KIT 1 X X
2 RE60037 FUEL LINE 1 X X
3 51M7040 O-RING 2 X X 9.300 X 2.200 MM
4 RE60029 ADAPTER 2 X X
5 RE46686 PLUG 2 X X
6 R113562 O-RING 1 X X
7 R113563 DRAIN PLUG 1 X X
8A 19M7785 SCREW 2 -795805 X X M10 X 25, (DUBUQUE T0)
19M7785 SCREW 2 -XXXXXX X X M10 X 25, (SARAN CD)
8B 19M8328 SCREW 2 795806- X X M10 X 25, (DUBUQUE T0)
19M8328 SCREW 2 XXXXXX- X X M10 X 25, (SARAN CD)
19M8328 SCREW 2 X X M10 X 25, (TORREON PE)
9 RE50752 SEAL KIT 1 X X
10 RE60021 FILTER ELEMENT 1 X X
11 RE60022 FILTER HEAD 1 X X (SUB RE70358)
12 RE60007 FUEL LINE 1 X X
13 14M7298 FLANGE NUT 1 X X M8
14 T14050 CLAMP 1 X X
15 R116116 BRACKET 1 X X
16 19M7865 SCREW 1 X X M8 X 16
17 RE60854 KIT 1 X X
18 RE70358 KIT 1 X X (SUB FOR RE500160, THIS APPLICATION)
19 24M7096 WASHER 2 795806- X X 10.500 X 18 X 1.600 MM, (DUBUQUE T0)
24M7096 WASHER 2 XXXXXX- X X 10.500 X 18 X 1.600 MM, (SARAN CD)
24M7096 WASHER 2 X X 10.500 X 18 X 1.600 MM, (TORREON PE)
20 R74012 SEALING WASHER 4 X X
21 RE51648 KIT 1 X X (12 V)
RE504134 KIT 1 X X (24 V)
.. RE51650 SEDIMENT BOWL 1 X X (A)
(A) TRANSPARENT
TRANSPARENTE
DURCHSICHTIGES
TRASPARENTE
TRANSPARENTE
GENOMSKINLIG

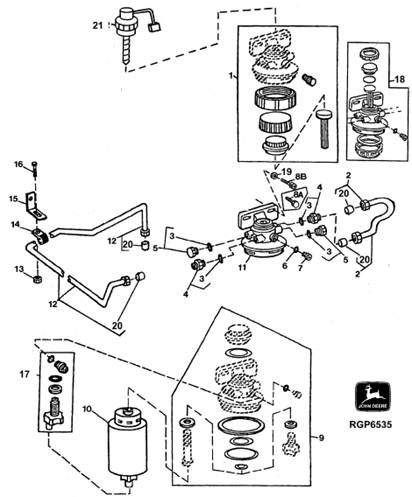

KEY PART NO. PART NAME QTY SERIAL NO. 0 0 0 REMARKS
1 RE51649 SEAL KIT 1 X X
2 RE60037 FUEL LINE 1 X X
3 51M7040 O-RING 2 X X 9.300 X 2.200 MM
4 RE60029 ADAPTER 2 X X
5 RE46686 PLUG 2 X X
6 R113562 O-RING 1 X X
7 R113563 DRAIN PLUG 1 X X
8A 19M7785 SCREW 2 -795805 X X M10 X 25, (DUBUQUE T0)
19M7785 SCREW 2 -XXXXXX X X M10 X 25, (SARAN CD)
8B 19M8328 SCREW 2 795806- X X M10 X 25, (DUBUQUE T0)
19M8328 SCREW 2 XXXXXX- X X M10 X 25, (SARAN CD)
19M8328 SCREW 2 X X M10 X 25, (TORREON PE)
9 RE50752 SEAL KIT 1 X X
10 RE60021 FILTER ELEMENT 1 X X
11 RE60022 FILTER HEAD 1 X X (SUB RE70358)
12 RE60007 FUEL LINE 1 X X
13 14M7298 FLANGE NUT 1 X X M8
14 T14050 CLAMP 1 X X
15 R116116 BRACKET 1 X X
16 19M7865 SCREW 1 X X M8 X 16
17 RE60854 KIT 1 X X
18 RE70358 KIT 1 X X (SUB FOR RE500160, THIS APPLICATION)
19 24M7096 WASHER 2 795806- X X 10.500 X 18 X 1.600 MM, (DUBUQUE T0)
24M7096 WASHER 2 XXXXXX- X X 10.500 X 18 X 1.600 MM, (SARAN CD)
24M7096 WASHER 2 X X 10.500 X 18 X 1.600 MM, (TORREON PE)
20 R74012 SEALING WASHER 4 X X
21 RE51648 KIT 1 X X (12 V)
RE504134 KIT 1 X X (24 V)
.. RE51650 SEDIMENT BOWL 1 X X (A)
(A) TRANSPARENT
TRANSPARENTE
DURCHSICHTIGES
TRASPARENTE
TRANSPARENTE
GENOMSKINLIG

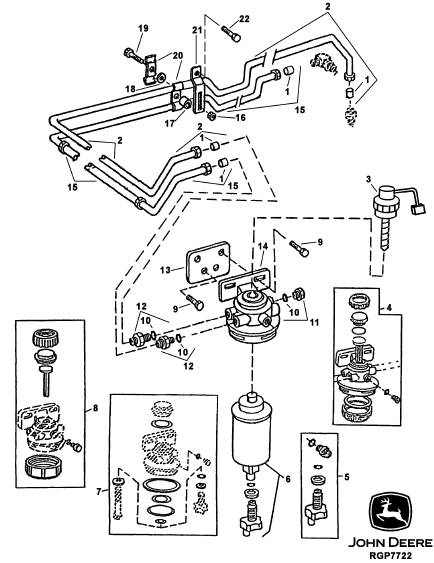

KEY PART NO. PART NAME QTY SERIAL NO. 0 0 0 REMARKS
1 R67092 SEAL 4 X
2 RE60192 FUEL LINE 1 X
3 RE51648 KIT 1 X (12 V)
RE504134 KIT 1 X (24 V)
4 RE70358 KIT 1 X (SUB FOR RE500160, THIS APPLICATION)
5 RE60854 DRAIN VALVE 1 X
6 RE62419 FUEL FILTER 1 X
7 RE516553 KIT 1 X (SUB FOR RE50752)
8 RE51649 SEAL KIT 1 X
9 19M7784 SCREW 2 X M10 X 20
10 51M7040 O-RING 4 X 9.300 X 2.200 MM
11 RE46686 PLUG 2 X
12 RE60030 FITTING 2 X
13 R123566 BRACKET 1 X
14 .................. FILTER HEAD 1 X (SUB RE70358)
15 RE60193 FUEL LINE 1 X
16 14M7298 FLANGE NUT 1 X M8
17 28H1517 WASHER 1 X 0.493" X 0.675" X 1/4"
18 24M7096 WASHER 1 X 10.500 X 18 X 1.600 MM
19 19M7868 SCREW 1 X M8 X 30
20 R81004 CLAMP 2 X
21 R131881 BRACKET 1 X
22 19M7867 SCREW 1 X M8 X 25
.. RE51650 SEDIMENT BOWL 1 X (A)
(B) TRANSPARENT
TRANSPARENTE
DURCHSICHTIGES
TRASPARENTE
TRANSPARENTE
GENOMSKINLIG

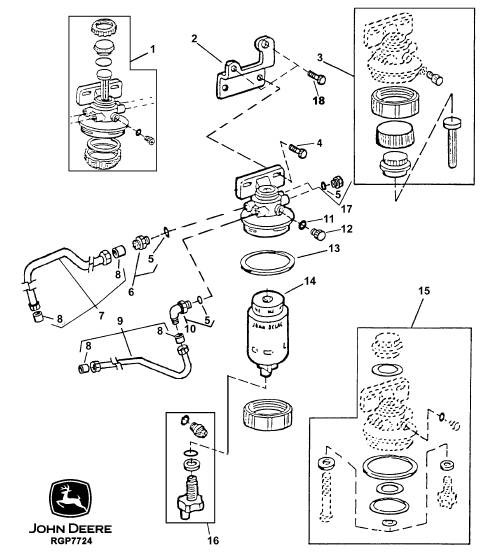

KEY PART NO. PART NAME QTY SERIAL NO. 0 0 0 REMARKS
1 RE70358 KIT 1 X X (SUB FOR RE500160, THIS APPLICATION)
2 R123621 BRACKET 1 X X
3 RE51649 SEAL KIT 1 X X
4 19M7784 SCREW 2 X X M10 X 20
5 51M7040 O-RING 4 X X 9.300 X 2.200 MM
6 RE60030 FITTING 1 X X
7 RE506236 FUEL LINE 1 X X (SUB FOR RE68305)
8 R67092 SEAL 4 X X
9 RE68306 FUEL LINE 1 X X
10 RE68307 ELBOW FITTING 1 X X
11 R113562 O-RING 1 X X
12 R113563 DRAIN PLUG 1 X X
13 R113565 O-RING 1 X X
14 RE62419 FUEL FILTER 1 X X
15 RE516553 KIT 2 X X (SUB FOR RE50752)
16 RE60854 KIT 1 X X PLUG
17 RE46686 PLUG 2 X X
18 19M8977 SCREW 2 X X M10 X 85
.. RE51650 SEDIMENT BOWL 1 X X (A)
(A) TRANSPARENT
TRANSPARENTE
DURCHSICHTIGES
TRASPARENTE
TRANSPARENTE
GENOMSKINLIG

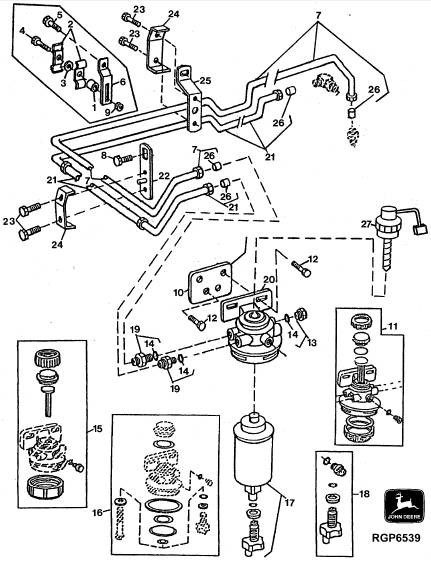

KEY PART NO. PART NAME QTY SERIAL NO. 0 0 0 REMARKS
1 28H1517 WASHER 1 -802992 X X 0.493" X 0.675" X 1/4"
2 R81004 CLAMP 2 -802992 X X
3 24M7096 WASHER 1 -802992 X X 10.500 X 18 X 1.600 MM
4 19M7868 SCREW 1 X X M8 X 30
5 19M7867 SCREW 1 -802992 X X M8 X 25
6 R131881 BRACKET 1 -802992 X X
7 RE60192 FUEL LINE 1 -802992 X X
RE501182 FUEL LINE 1 802993- X X
8 19M7783 SCREW 1 802993- X X (A) M10 X 16
9 14M7298 FLANGE NUT 1 -802992 X X M8
10 R123566 BRACKET 1 X X
11 RE70358 KIT 1 X X (SUB FOR RE500160, THIS APPLICATION)
12 19M7784 SCREW 4 X X M10 X 20
13 RE46686 PLUG 2 X X SAE
14 51M7040 O-RING 4 X X 9.300 X 2.200 MM
15 RE51649 SEAL KIT 1 X X FUEL GUARD
16 RE516553 KIT 1 X X (SUB FOR RE50752)
17 RE62419 FUEL FILTER 1 X X
18 RE60854 DRAIN VALVE 1 X X
19 RE60030 FITTING 2 X X
20 RE60022 FILTER HEAD 1 X X (SUB RE70358)
21 RE60193 FUEL LINE 1 -802993 X X
RE501183 FUEL LINE 1 802993- X X
22 R136081 BRACKET 1 802993- X X (A)
23 19M7752 CAP SCREW 4 802993- X X (A) M4 X 20
24 R136082 CLAMP 2 802993- X X (A)
25 R136079 BRACKET 1 802993- X X (A)
26 R67092 SEAL 4 X X
27 RE51648 KIT 1 X X (12-VOLT)
RE504134 KIT 1 X X (24-VOLT)
.. RE51650 SEDIMENT BOWL 1 X X (B)
(A) ALSO INCLUDED IN CODE 1668
(A) ALSO INCLUDED IN CODE 1668
(A) ALSO INCLUDED IN CODE 1668
(A) ALSO INCLUDED IN CODE 1668
(A) ALSO INCLUDED IN CODE 1668
(A) ALSO INCLUDED IN CODE 1668
(B) TRANSPARENT
TRANSPARENTE
DURCHSICHTIGES
TRASPARENTE
TRANSPARENTE
GENOMSKINLIG
KEY PART NO. PART NAME QTY SERIAL NO. 0 0 0 REMARKS
1 28H1517 WASHER 1 -802992 X 0.493" X 0.675" X 1/4"
2 R81004 CLAMP 2 -802992 X
3 24M7096 WASHER 1 -802992 X 10.500 X 18 X 1.600 MM
4 19M7868 SCREW 1 X M8 X 30
5 19M7867 SCREW 1 -802992 X M8 X 25
6 R131881 BRACKET 1 -802992 X
7 RE60192 FUEL LINE 1 -802992 X
RE501182 FUEL LINE 1 802993- X
8 19M7783 SCREW 1 802993- X (A) M10 X 16
9 14M7298 FLANGE NUT 1 -802992 X M8
10 R123566 BRACKET 1 X
11 RE70358 KIT 1 X (SUB FOR RE500160, THIS APPLICATION)
12 19M7784 SCREW 4 X M10 X 20
13 RE46686 PLUG 2 X SAE
14 51M7040 O-RING 4 X 9.300 X 2.200 MM
15 RE51649 SEAL KIT 1 X FUEL GUARD
16 RE516553 KIT 1 X (SUB FOR RE50752)
17 RE62419 FUEL FILTER 1 X
18 RE60854 DRAIN VALVE 1 X
19 RE60030 FITTING 2 X
20 RE60022 FILTER HEAD 1 X (SUB RE70358)
21 RE60193 FUEL LINE 1 -802993 X
RE501183 FUEL LINE 1 802993- X
22 R136081 BRACKET 1 802993- X (A)
23 19M7752 CAP SCREW 4 802993- X (A) M4 X 20
24 R136082 CLAMP 2 802993- X (A)
25 R136079 BRACKET 1 802993- X (A)
26 R67092 SEAL 4 X
27 RE51648 KIT 1 X (12-VOLT)
RE504134 KIT 1 X (24-VOLT)
.. RE51650 SEDIMENT BOWL 1 X (B)
(A) ALSO INCLUDED IN CODE 1668
(A) ALSO INCLUDED IN CODE 1668
(A) ALSO INCLUDED IN CODE 1668
(A) ALSO INCLUDED IN CODE 1668
(A) ALSO INCLUDED IN CODE 1668
(A) ALSO INCLUDED IN CODE 1668
(B) TRANSPARENT
TRANSPARENTE
DURCHSICHTIGES
TRASPARENTE
TRANSPARENTE
GENOMSKINLIG
